Desktop and rackmount choices
Choose a desktop arrangement near the production team or a rackmount arrangement for centralized power, cabling and service access. Match the actual model to ventilation and workspace noise requirements.
Professional Media Storage
LecenSpeed 12-Bay Media Storage
Shared media storage sized for compact production environments.
LecenSpeed 12-bay media storage provides a shared repository for editing, media organization and delivery in studios, education and departmental video teams. Desktop and rackmount options address different workspace, online capacity and client-access requirements.
Product brand: LecenSpeed
- Drive bays
- 12 bays
- Media access
- Network sharing
- Sizing
- Capacity and concurrency
Overview
Move from separate drives to a shared media repository
Central storage gives the team a consistent place to access source media and reduces repeated copying during hand-off. The 12-bay series suits compact shared-production environments, with capacity sized for active projects and storage and network throughput matched to media bitrate and concurrent streams.
In focus
Capabilities and production benefits
Shared project media
Serve the same media files to multiple workstations over the network. Organize camera originals, proxies, audio, graphics and deliverables in a consistent project directory structure.
Workload-based connectivity
Match client adapters, switching and storage uplinks as one path. Account for playback alongside ingest, export and backup traffic.
Project access and protection
Configure users and folder access, then plan storage protection and independent backups. Separate source media, working files and deliveries for manageable retention and recovery.

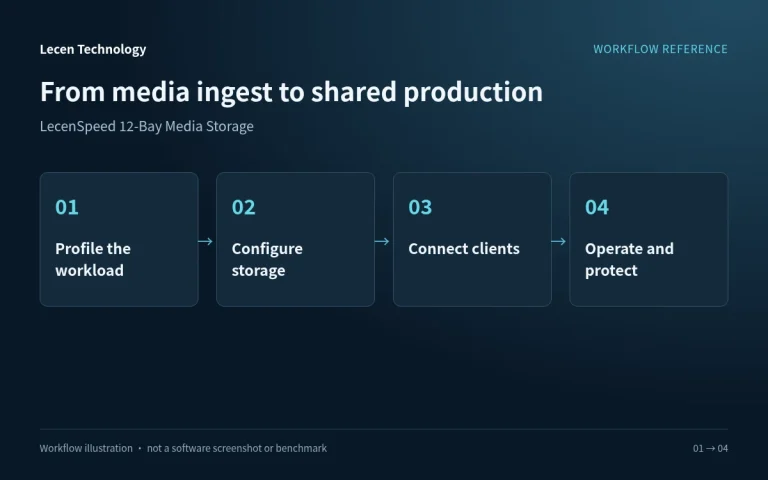

Workflow
From media ingest to shared production
Network access, directory structure, permissions and media references establish how the production team uses central storage.
Ingest media
Place camera media, audio and graphics in project directories and check file integrity.
Organize storage
Configure capacity and protection and separate sources, working files and deliveries.
Connect workstations
Set up networking, shared paths and access rights for production applications.
Retain and back up
Manage project versions against retention needs and preserve important content in an independent backup.
Integration
Deployment and production integration
Size the configuration from project capacity, media formats and concurrent workstations, then verify networking and production access together.
Profile workload and capacity
Identify source bitrates, concurrent streams, incoming writes and online retention. Distinguish raw capacity, array-usable space and operating headroom.
Configure sharing and networking
Set client access, switches and storage uplinks alongside directories, accounts and permissions. Record the paths used by production applications.
Verify production and recovery
Test representative playback, ingest and delivery. Preserve configuration and independent backups and check the recovery procedure.
Configuration
Configuration and selection
| Product series | LecenSpeed 12-bay professional media storage |
|---|---|
| Deployment | Desktop or rackmount, according to model |
| Media access | Central media sharing across production workstations |
| Capacity sizing | Drive capacity, drive count, RAID layout and hot spares |
| Network configuration | Matched client access, switching and storage uplinks |
| Production workload | Codec bitrate, concurrent streams and read/write balance |
| Data organization | Project directories, permissions and independent backup |
Applications
Production applications
Production studios
Give editing, graphics and media preparation a shared location instead of passing temporary drives between desks.
Teaching labs
Organize course media and access rules so students practise a consistent production workflow.
Corporate video teams
Keep event, interview and promotional footage in an organized location for revisions and reuse.
Application and workflow visuals
Engineering decisions
Define the configuration. Validate the workflow.
Identify the actual enclosure
The 12-bay name does not determine chassis format, populated drives or network interfaces. For a desktop location, confirm loaded noise, cooling and power; for a rack, check depth, rails and service clearance. The quoted model, photographs and installation requirements should agree.
Size the active project working set
Inventory originals, proxies, audio, project files, caches and delivery versions, with retention periods and growth allowance. Drive capacity multiplied by installed drives gives raw capacity only. Usable space also depends on protection layout, spares, filesystem overhead and operating reserve; distinguish decimal TB from binary TiB.
Model the busiest production period
Estimate reads from simultaneous media streams and their bitrates, then add ingest, exports and backup traffic. A multicamera timeline can read several sources, and proxies differ from originals. Check the client-to-switch-to-storage path rather than treating port speed as delivered throughput.
Suggested validation and handover checks
Use real editing projects
On the intended workstations and editing software, test multicamera playback, timeline seeking, exports and simultaneous ingest. Include cold-cache access and sustained runs. Record dropped frames, response times, read/write traffic and client decoding load to separate storage limitations from workstation limitations.
Verify the configuration on site
Record enclosure, drive models and count, protection layout, usable capacity, negotiated network links and software versions. Run a representative workload in the installation location and check temperature, alerts and noise impact on recording or office work. Do not mark unmeasured conditions as passed.
Restore a complete sample project
Recover media, project files and permissions from an independent backup, then reopen the project in the editing application. Record elapsed recovery time and missing-file checks. Any disk-failure exercise requires non-production data, a verified backup and the manufacturer's approved procedure.
FAQ
Common questions
How is the number of simultaneous editors determined?
Estimate the combined workload from each editor’s media bitrate, concurrent streams and read/write tasks, then match the array and client network. Native multi-camera footage and proxy editing should be assessed separately.
How do desktop and rackmount deployment differ?
Desktop placement emphasizes workspace, noise and ventilation. Rack deployment emphasizes cabinet depth, power, cabling and service clearance. Configure the actual model for those conditions.
How does storage work with editing software?
Shared storage serves media through consistent paths. Project locking, application collaboration and media sharing are separate layers and follow the software’s workflow.
How do RAID and backup complement one another?
RAID provides the disk protection of the selected array level. Independent backups support recovery from deletion, corruption or equipment failure. Plan both and test restoration.
What information is needed for configuration?
Provide source formats and bitrates, workstation count, online capacity, adapters and switches, plus desktop or machine-room installation conditions.
Does 12 bays guarantee a particular number of 4K editing seats?
No. Codec, bitrate, multicamera streams, concurrent writes, disk layout, networking and client decoding all matter. Agree a workload using the actual projects and verify that concurrent combination.
Is a separate backup still needed with RAID?
Yes. Array redundancy addresses disk failures within its design limits, not every accidental deletion, chassis failure or ransomware incident. Maintain an independent recovery path and demonstrate that restored projects and media are usable.
Technical references and supply scope
LecenSpeed 12-Bay is a Lecen storage series. Confirm the enclosure, drives, networking and software configuration. References inform networking and data-protection planning; they do not establish Windows Server deployment, every documented feature or certification.
- Microsoft Learn: SMB file-server performance considerations
- NIST SP 800-209: storage protection and recovery guidance
These references explain principles and integration conditions. Confirm capabilities against the supplied revision, project configuration and agreed tests.
Project brief
Information for configuration
Media load
Provide representative bitrates, simultaneous streams and ingest tasks.
Usable capacity
Calculate retention and independent backup requirements.
Location
Choose desktop or rackmount around acoustics, cooling and networking.
