AI Vision & Visual Processing

Lecen AI Visual Object Tracking

Cross-frame association and motion records for video targets.

Lecen AI Visual Tracking organizes observations of people and objects across video frames into motion tracks. Its product direction covers target analysis, subject-following processing and time-based annotation, with source-linked movement information for subsequent image processing and analysis.

Product brand: Lecen

Discuss visual tracking See how it works

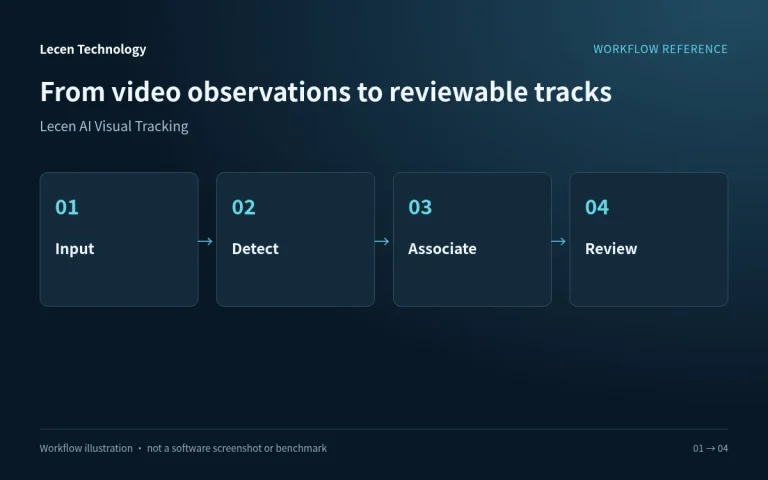

Lecen AI Visual Tracking workflow illustration — Workflow illustration; not a product screenshot, wiring diagram or measured result.

Targets: Video people / objects
Data basis: Image position and time
Use: Tracking / annotation / analysis

Overview

Connect individual detections into a time-based motion record

Detection describes an object in one frame; tracking associates it through a sequence. Target selection, cross-frame matching and timing organize a trajectory that can be reviewed against the video. Image coordinates and source references make occlusion, crossing movement and shot changes visible to the operator.

In focus

Capabilities and production benefits

Task-specific target definition

Define object classes, the working image area and relevant actions. Establish whether the task concerns one target or several so results answer the intended analysis question.

Cross-frame association

Associate target observations over time to describe position changes and motion segments. Review occlusions, crossings and reappearances for incorrect track associations.

Tracks linked to excerpts

Keep image positions, video timing and track segments together for subject-following, annotation or subsequent analysis, with a route back to the source context.

Tracking-quality review

Organize difficult clips by target size, speed and obstruction. Evaluate missed observations, incorrect associations and interruptions against the continuity needed by the workflow.

Workflow

From video observations to motion tracks

Keep observations and time references together so downstream analysis can be checked against the source image.

Define targets
Specify object classes, image areas and required result information.
Observe frames
Locate targets and their visible state in the video.
Associate over time
Connect observations into tracks, reviewing crossings, occlusions and gaps.
Review and reuse
Use validated track segments in annotation, image processing or analysis.

Integration

Video conditions and data integration

Use the target, footage and intended results to define evaluation, with agreed coordinate and time conventions.

Confirm sources and targets

Provide original footage, target examples, size and movement, noting fixed or moving cameras and edits.

Define outputs

Agree image coordinates, time units and track organization for the receiving workflow.

Test difficult sequences

Inspect obstructions, crossings, fast movement and reappearances, recording gaps and incorrect associations.

Review results

View the data against the video and retain valid segments and exceptions requiring manual attention.

Configuration

Scope and configuration

Lecen AI Visual Object Tracking — Scope and configuration
Product focus	Continuous video-target tracking and content analysis
Targets	People or object classes defined for the task
Coordinates	Image-space positions, distinct from physical coordinates
Time association	Observations linked to video time and track segments
Evaluation	Continuity, occlusion, crossings and track gaps
Handoff definition	Target identifiers, coordinate and time conventions
Project inputs	Source video, target examples, difficult clips and intended use

Applications

Production applications

Annotation and excerpt review

Organize appearances and movement into reviewable excerpts for a content-management workflow.

Sports and event analysis

Evaluate visible motion in event footage, with particular attention to target visibility and continuity.

Interaction and research evaluation

Use observations for interaction or research while keeping image measurements distinct from physical-space measurements.

Application and workflow visuals

Presenter visual tracking application concept; illustrates the application context.AI-generated concept, not a product test, software screenshot or customer project.

Engineering decisions

Define the configuration. Validate the workflow.

Constrain the target and task

Provide examples of the people or objects and explain whether the task is single-target tracking, multiple targets, subject-following crops or segment annotation. Define association after exits and how long an occlusion may last before a new track begins. A persistent track ID is not proof of a person's identity.

Define coordinates and time explicitly

Specify boxes, centers or other location outputs, original versus resized image coordinates, and frame numbers, timestamps or timecode. Two-dimensional image positions are not physical distances. Spatial measurement needs separate calibration, scale evidence and error testing.

Size for the actual video workload

List stream count, dimensions, frame rate, target density and maximum clip length, distinguishing live from offline use. Include decoding, detection, association and result writing in sample tests. Confirm model revision, processing location, media access and retention requirements.

Suggested validation and handover checks

Build a manually checked difficult test set
Include small targets, similar appearances, fast movement, crossings, occlusion and camera cuts. Annotate targets and time ranges. Keep tuning material separate from acceptance material, reporting misses, false detections, ID switches and track breaks by scenario rather than one aggregate score.
Check usefulness in the destination workflow
Overlay results on the source to verify scaling, timing and target IDs. For follow-crops, inspect lost subjects and abrupt reframing; for search, inspect segment boundaries. Agree tolerances and manual-review effort before testing, rather than merely checking that a result file exists.
Exercise interruptions and version changes
Test empty frames, corrupt frames, interrupted inputs and restarts in isolation. Establish whether IDs continue and how exceptions are marked. Re-run a retained sample set after model or threshold changes, keeping versions, settings and failure examples.

FAQ

Common questions

How does tracking differ from detection?

Detection locates objects in an individual frame. Tracking associates observations across frames into a time-based record of movement.

How is a track judged useful?

Check correct target association, completeness of relevant segments and behavior through occlusion. Single-frame detection results alone are insufficient.

Do results directly represent physical distance?

Pixel positions and physical distances are different quantities. Distance or 3D measurement requires appropriate calibration, spatial models or dedicated measurement equipment.

Does a target identifier establish a person’s identity?

It organizes observations and tracks, not a name, facial identity or cross-scene identity determination.

How are results used in production?

Agree coordinates, time references and relevant track segments, then connect them to the annotation, subject-processing or analysis workflow. Retain source video for review.

Can a track provide a person's real identity or an accurate travel distance?

Not by itself. Track IDs associate observations; they are not identity credentials. Pixel displacement is not physical distance. Identification and spatial measurement are separate requirements needing their own evidence, conditions and validation.

How does reliable tracking differ from accurate detection?

Detection concerns finding the correct target in a frame. Tracking also concerns maintaining the correct association over time. Boxes can remain visible while IDs swap during crossings, so assess misses, mistaken associations, broken tracks and recovery separately.

Technical references and supply scope

Confirm the supplied version, target classes, live-stream capacity and interfaces of Lecen AI Visual Tracking. Accuracy requires project-specific testing. Video tracks should not be treated as identity credentials, metrology results or safety-control inputs without separate validation.

These references explain principles and integration conditions. Confirm capabilities against the supplied revision, project configuration and agreed tests.

Project brief

Information for configuration

Task definition

Object classes, pixel size, crossing targets and camera cuts.

Data meaning

Distinguish image tracks, world coordinates and personal identity.

Evaluation set

Include missed targets, wrong associations and reappearances.

Talk to Lecen

Define the target and how its motion will be used

Share representative footage, target examples and the intended result to establish scope, data conventions and review criteria.

Discuss visual tracking
